CINEMONITOR HD 3DVIEW RF
THE WIRELESS S3D TOOLBOx
Two processed outputs deliver the synchronized signals, as left and right or side by side.
CINE MONITOR HD 3DVIEW RF
THE WIRELESS S3D TOOLBOX
TITANHD TX 3DVIEW
An extension of the TitanHD, the TitanHD Tx 3DView transmits 3D-stereoscopic side by side pictures without any loss. It accepts HD SDI or HDMI 10-bits signals and includes an embedded synchronizer, ideal for non-genlocked cameras (like DSLRs).
Vertical and horizontal flips may be applied to each signal, before transmission. Two processed outputs deliver the synchronized signals, as left and right or side by side.
Like its 2D counterpart, the TitanHD Tx 3DView can be stacked between camera and battery (Anton-Bauer or V-Mount). It can also be mounted with a 3D swing arm. TitanHD Tx 3DView can be used with a CineMonitorHD3DView RF or with a conventional TitanHD Rx. In this case the receiver delivers side by side signals to its outputs.
Start with the customer – find out what they want and give it to them.
S3D FEATURES
Anaglyph red/cyanAnaglyph green magenta
Anaglyph blue/yellow
Monochrome
Vertical and horizontal flips
Derobe's grid
Horizontal shift
Black and white
Color
Shutter glasses
CINEMONITORHD 3DVIEW RF

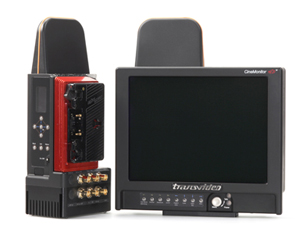

An extension of the CineMonitorHD3DView Evolution, the CineMonitorHD3DView RF features the same 3D tools kit plus the ability to receive a wireless 3D-stereoscopic side by side signal from a TitanHD Tx 3DView. It can also be used for regular 2D HD productions.
The CineMonitorHD 3DView RF includes multiple display modes to evaluate stereoscopic convergences and camera correlation. The measurement tools (waveform & histogram) display the 2 signal simultaneously.
With a shoulder strap or harness, the CineMonitorHD 3DView RF is the perfect stereographer's wireless system, giving the possibility to use S3D tools free of wires.
