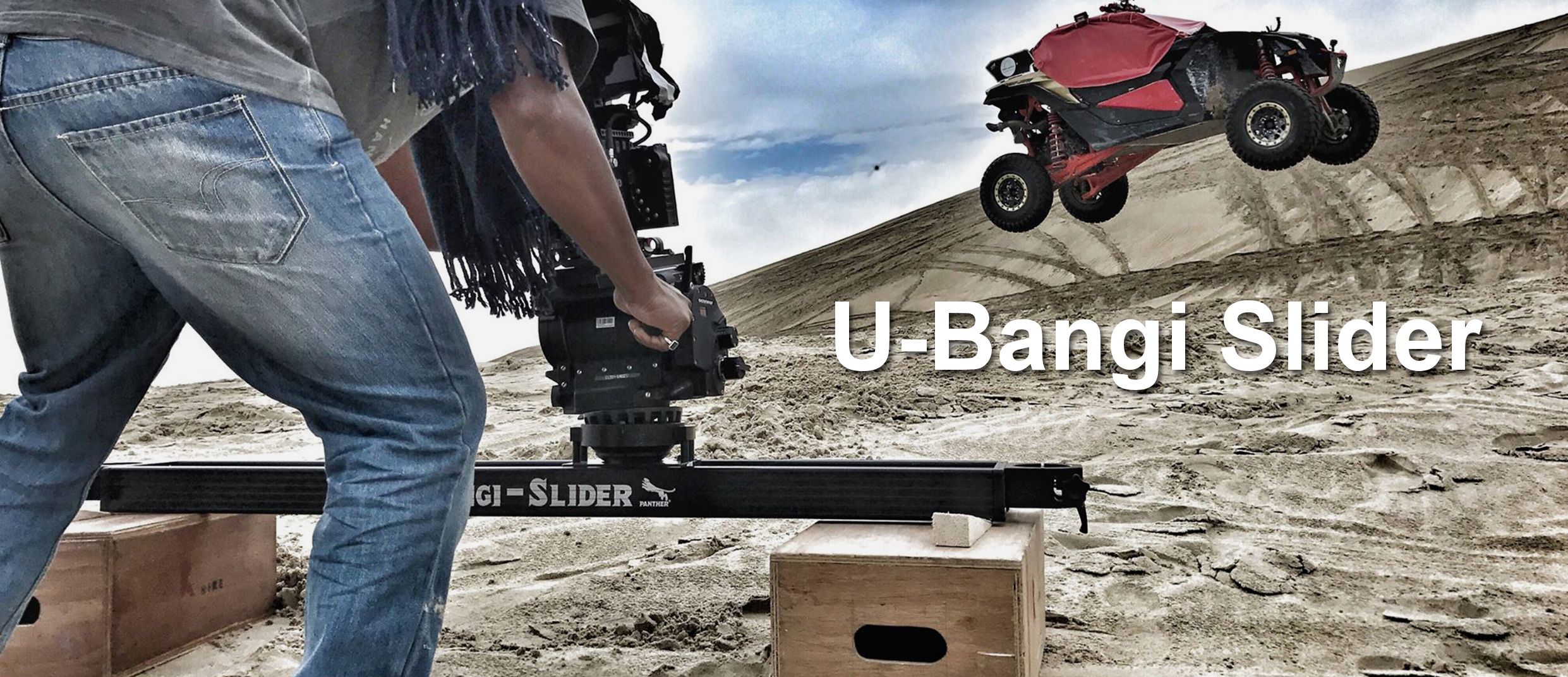

U-BANGI-SLIDER
DESIGNED TO BE GREAT
If you work with it one time you will always do it.
With the new U-Bangi-Slider system Panther extends the already
well-established
U-Bangi II with many additional new features.
Thus, the U-Bangi-Slider covers the typical slider function on a tripod or dolly.
Everyone has different requirements to a camera slider.
That’s why the U-Bangi-Slider can be configured indvidually
exactly to your requirements
.
It consists of many individual hard coated components which enable high flexibility! Make your own U-Bangi-Slider exactly as you need it!
It is available in 6 different lengths (48cm – 296cm) and 2 different widths (19,5cm and 25cm).
U-Bangi Track 48 cm / 1,6 ft. (300470)
U-Bangi Track 64 cm / 2,1 ft. (228107)
U-Bangi Track 88 cm / 2,9 ft. (228108)
U-Bangi Track 136 cm / 4,5 ft. (228110)
U-Bangi Track 200 cm / 6,6 ft. (228111)
U-Bangi Track 296 cm / 9,7 ft. (228112)
Bridge, narrow 19,5 cm / 7,7"
228115
Bridge 25 cm / 9,8"
228117
3 Sledges
The well proven sledge 1 from our U-Bangi II can also be used with the new U-Bangi-Slider to make the usual function possible.
A new sledge is available in standard width (25 cm / 9,8") and narrow width (19,5 cm / 7,7"). Depending on your needs you can configure everything perfectly for you.
Sledge 1
111001
Sledge 2, narrow
Sledge 2
6 different mounting options
MOUNTING ADAPTER
Designed with passion. Manufactured with precision.
With the new 360° Rotary Adapters, long adjusting time is a thing of the past.
Adjusting the range is as easy as never before, because the Slider can be easily moved and fixed with the Rotary Adapters.
Due to the precision bearing, a soundless 360° rotation, even when load, is possible with ease.
A strong brake lever provides a solid fixation of the whole unit, wherever needed.
Rotary Adapter
228123
Suitable for all U-Bangi tracks. Just for standard track configuration. Must be combined with Bowl Adapter (300441), Mitchell Adapter (136907) or Tube Flange (228122).
Rotary Adapter, narrow
228118
Suitable for U-Bangi tracks 64cm, 88cm and 136cm. Just for narrow track configuration. Must be combined with Bowl Adapter (300441), Mitchell Adapter (136907) or Tube Flange (228122).
Adapter Plate
300374
Suitable for U-Bangi tracks 64cm, 88cm and 136cm. For narrow and standard track configuration. Must be combined with Bowl Adapter (300441), Mitchell Adapter (136907) or Tube Flange (228122).
Bowl Adapter
300441
Mount the Rotary Adapter, Rotary Adapter narrow and Adapter Plate on a 150 mm tripod.
Mitchell Adapter
310333
Mount the Rotary Adapter, Rotary Adapter narrow and Adapter Plate to mitchell mount.
Tube Flange
228122
Mount the Rotary Adapter, Rotary Adapter narrow and Adapter Plate on a Euroadapter (e. g. on a Dolly).
ONE UNITIY
We are sure: you will love it
Feel the Freedom
The U-Bangi-Slider is the only one, which forms a unit together with the dolly. Whether as a slider or a low rig, with the Clamping for Bridge (228116) or the High-Low Adapter (302379) it can be perfectly integrated to guarantee the best possible shots.
302379
CLOSE TO THE GROUND
For every situation the right accessories
For shots close to the ground you can use Levelling Feet (110391). You are able to level the slider exactly to your needs.
Rubber Feet
For sensitive surfaces you can use our rubber feet (202442). They are mounted very quick into the tracks’ groove (just 48cm, 64cm, 88cm and 136cm track) without any tools.
IMPRESSIVE
This is huge
Up to 3 m / 9,7 ft. length
With a maximum length of almost 3 m / 9,7 ft. you can use the U-Bangi-Slider in every situation. No matter if small or big. There is something for everybody.

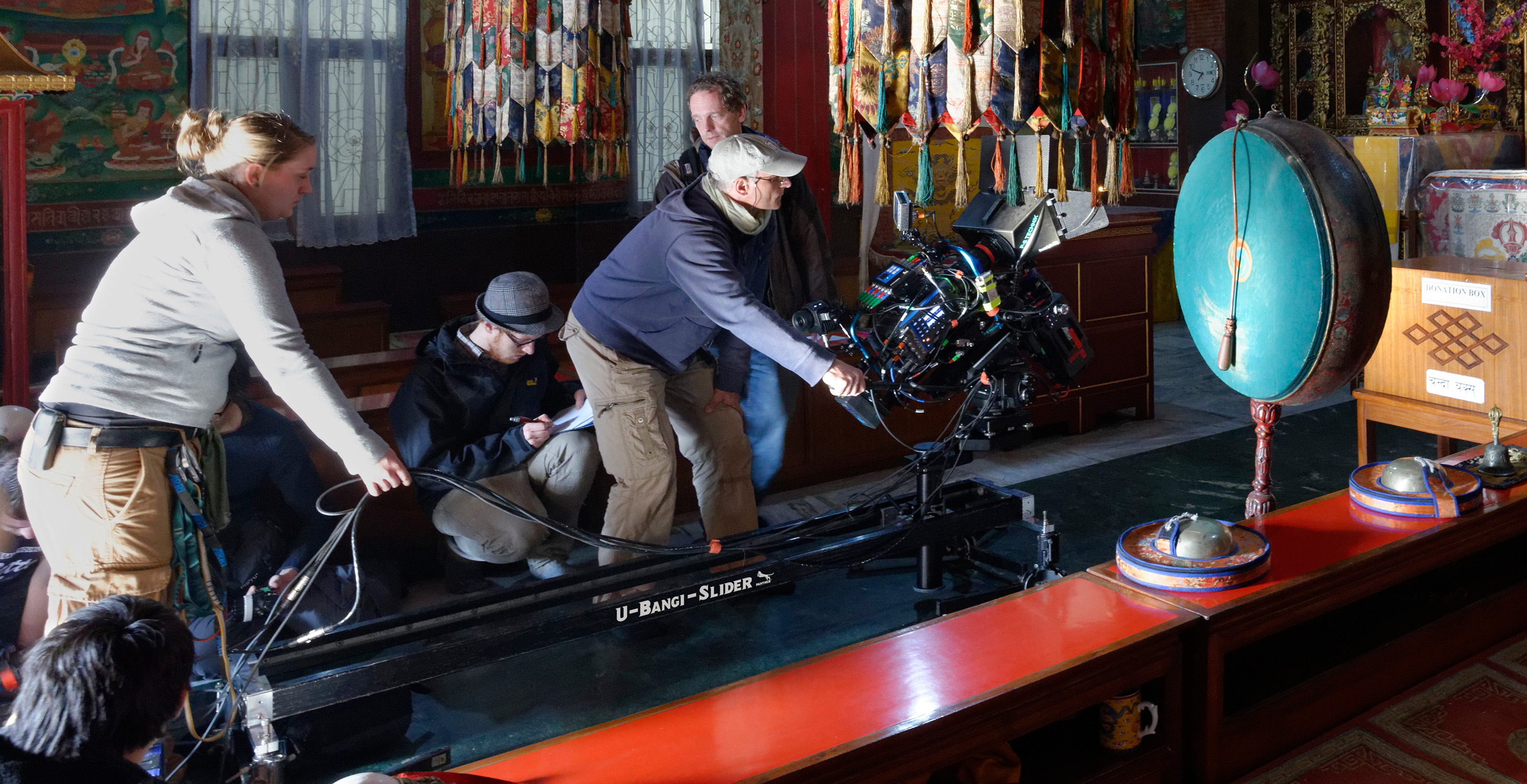

On set the U-Bangi-Slider is meeting with great enthusiasm. Due to the variety of possibilities, it offers numerous settings. High and low shots can be implemented quick and easy without time consuming adjustments.
U-BANGI
We didn't change it. We improved it.
As familiar as it has always been.
Despite the number of new features, the well-known standard U-Bangi function certainly remains.
All existing U-Bangi II can be upgraded!
BRIDGE EXTENTION
Flexibility Redefined
For even more possibilities we developed the Bridge Extention (302339). It is compatible to many accessories: Rigging tubes (48mm), Panther Multi Mount or VacuRigg suction cups, levelling feet, 3 / 8" - 28-16mm Adapter, Euroadapter and much more.
Bridge Extention with Euromount
(122209)
Bridge Extention with Euromount
Bridge Extention with Leveling Foot (110391)
Bridge Extention with Multi Mount (145990)
Bridge Extention with 3 / 8" - 28-16 mm Adapter (204156) side mounted
Bridge Extention with 3 / 8" - 28-16 mm Adapter (204156) center mounted
Bridge Extention with
Rigging Tubes (48 mm)
Bridge Extention with
CAR MOUNT
Powerful in every situation
Your rigging creativity
Rig your U-Bangi-Slider on a car. You can use parts from our Multi Mount / Vacu Rigg car mount systems or you start rigging your own tubes.
TRANSPORT
As versatile as the slider itself
Various cases available
We have cases in different lengths available. Please contact us for more information.
FURTHER FEATURES
Smart - also in the smallest detail
Due to the low position of your bowl (13cm / 5") the U-Bangi-Slider is the perfect tool to make great low shots.
The sledge can be optionally equipped either with a Magnetic Stop (300377) or a Shock Absorber (228121). Both can dampen the sledges very smooth. The oil hydraulic shock absorber is adjustable manually, depending on camera load.
To ensure a quick and easy change between the standard width and narrow width, from U-Bangi sledge 1 to sledge 2 or to change the whole track length of your slider we designed something really great. It is so small that it will not attract attention, and so great that you never want to work without it: Quick Change Adapter
For very smooth movements there is a Fluid Drag (302333) available. By turning to “+“ or “-“ you can adjust the fluid intensity.
To remote control the U-Bangi-Slider we developed a drive unit (301030). Operation is done with the new handset (301031)for the drive unit. It’s compatible to all Slider lengths and can be equipped with end switches (manual positioning possible).
