CLM-3

Controlled Lens motor

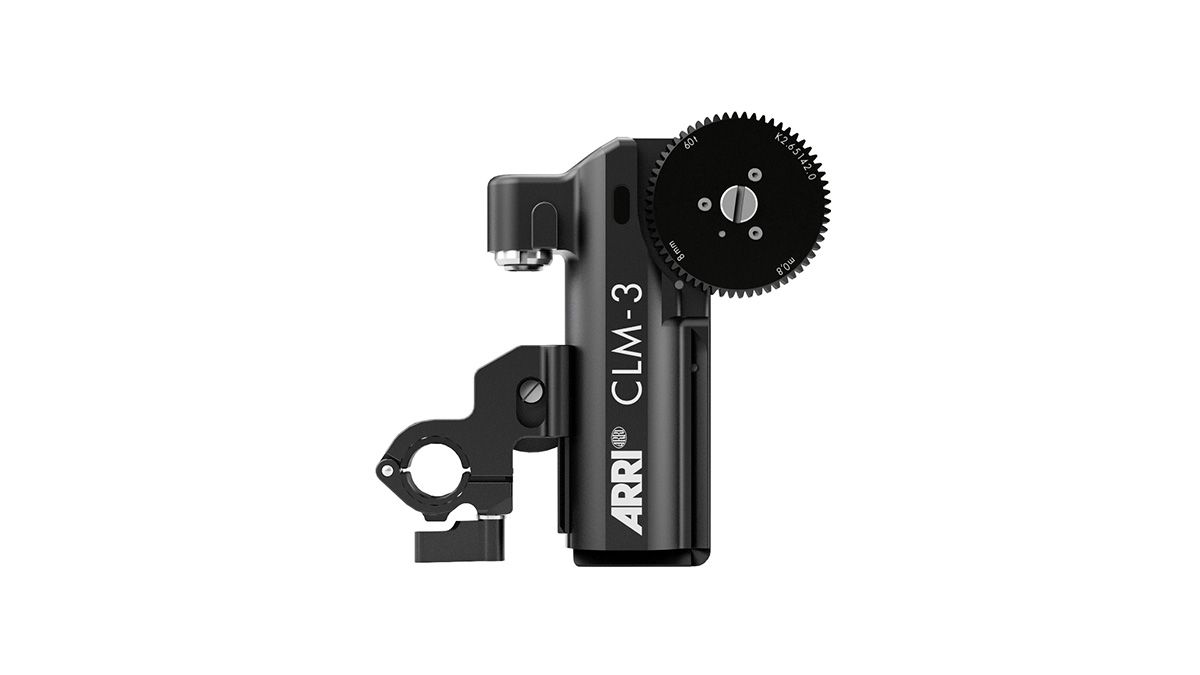

The CLM-3 motor is a very strong and fast lens motor. It drives even heavy, difficult-to-operate lenses under extreme low temperature conditions.

Controlled Lens Motor CLM-3


Strong and Fast
The CLM-3 motor is a very strong and fast lens motor. It drives even heavy, difficult-to-operate lenses under extreme low temperature conditions.

Modular System

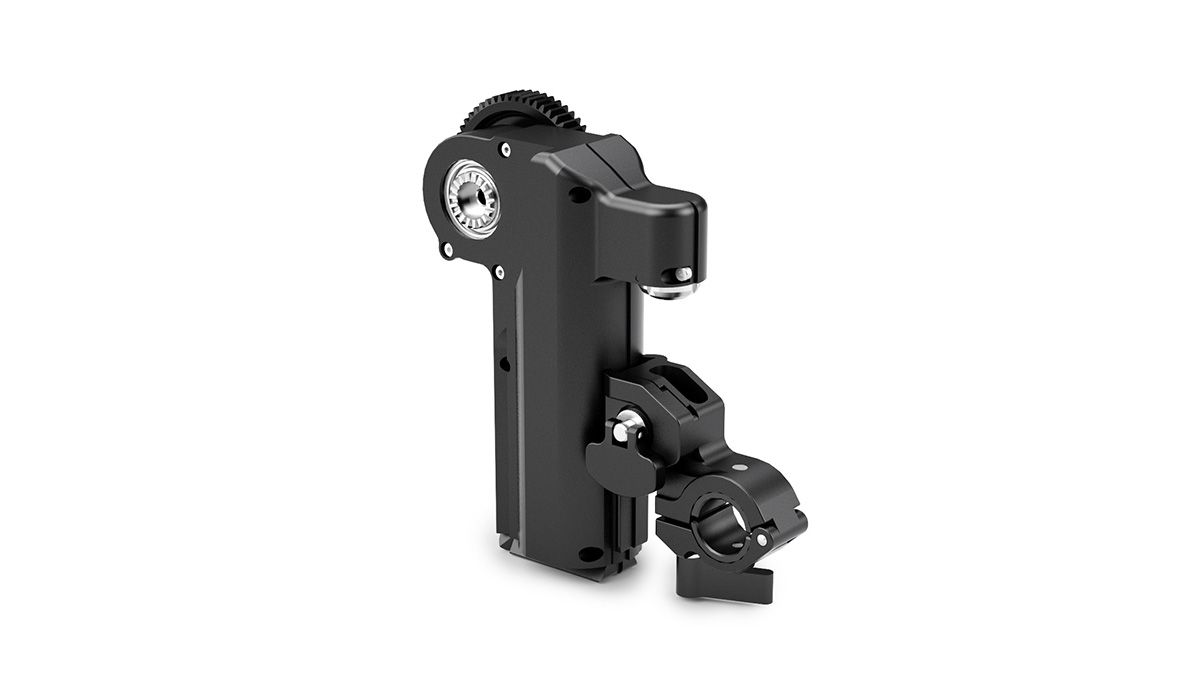

The CLM-3's modular concept separates motor unit, gear, cable and bracket to make handling   and maintenance much easier.

Odoo text and image block

Flexible Setup

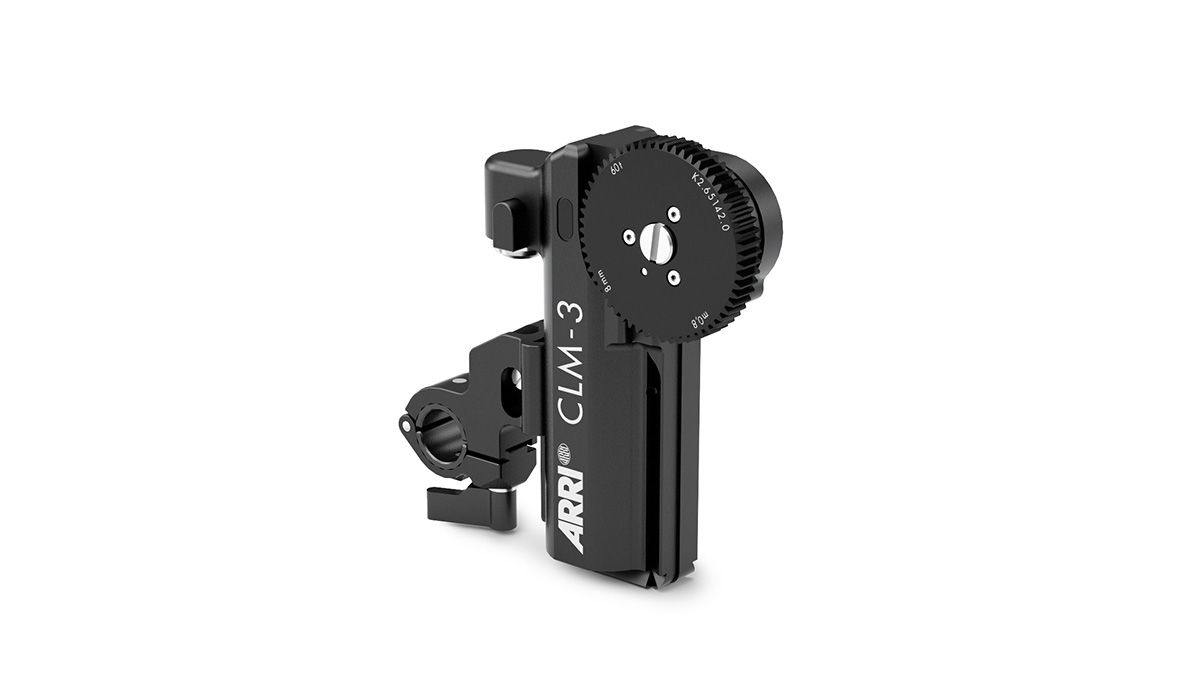

CLM-3 gear modules can attach on either side of the motor, providing more flexibility and various mounting options. The rod bracket can be mounted horizontally or vertically over a quick clamp shoe. Additional inserts make mounting to 19 mm, 15 mm or 5/8” support systems possible.

Gear Modules
The CLM-3 is fully compatible to all common lens gear systems. Available gears include Module 0.8, 0.6, 0.5, 0.4/Pitch 32, 48, 64.

Odoo text and image block

The CLM-3 Motor is compatible to

  • Universal Motor Controller UMC-4
  • Single Motor Controller SMC-1
  • ALEXA Plus
  • ALEXA Plus 4:3
  • ALEXA XT Plus
  • ALEXA SXT Plus
  • ALEXA Studio
  • ALEXA XT Studio
  • ALEXA SXT Studio
  • ALEXA 65
  • ARRICAM, ARRI 416PLUS, ARRI 435 Extreme
