Series 2000

Fluid Heads With Balance Control

2003  --  2004  --  2015

Series 2000 Heads

Fluid Heads with Balance Control

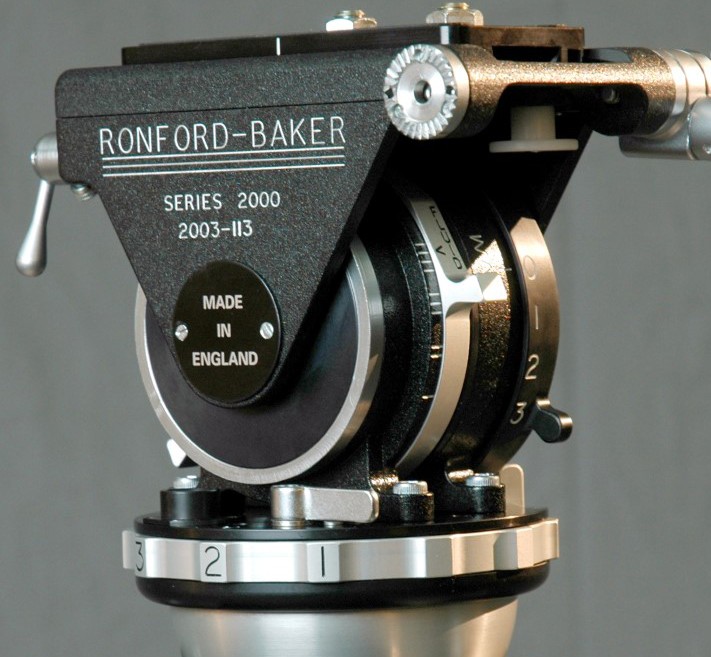

Series 2000 Fluid Heads with Balance Control Model 2003

Incorporates the will proven Ronford-Baker fluid system operated by a single fluid system control lever with four progressive positions both pan and tilt.
The tilt operation is backed up by a balance control system with an “off” position and three progressive settings operated by a single control lever, giving an unprecedented smoothness and accuracy of control and balance under all situations.

  • Engineered for quality, strength and durability.
  • Quick release camera plate adjustable for balance with built in safety stops and scale.
  • Double pan bar facility.
  • Smooth positive braking on pan and tilt.
  • 100mm bowl fitting.
  • Tilt 120º.
  • Fully guaranteed.

Technical Specifications
Weight 7.5lb (3.4kg).
Operational temperature range
+150ºF to -40ºF (+60ºC to -40ºC).



Series 2000 Fluid Heads with Balance Control

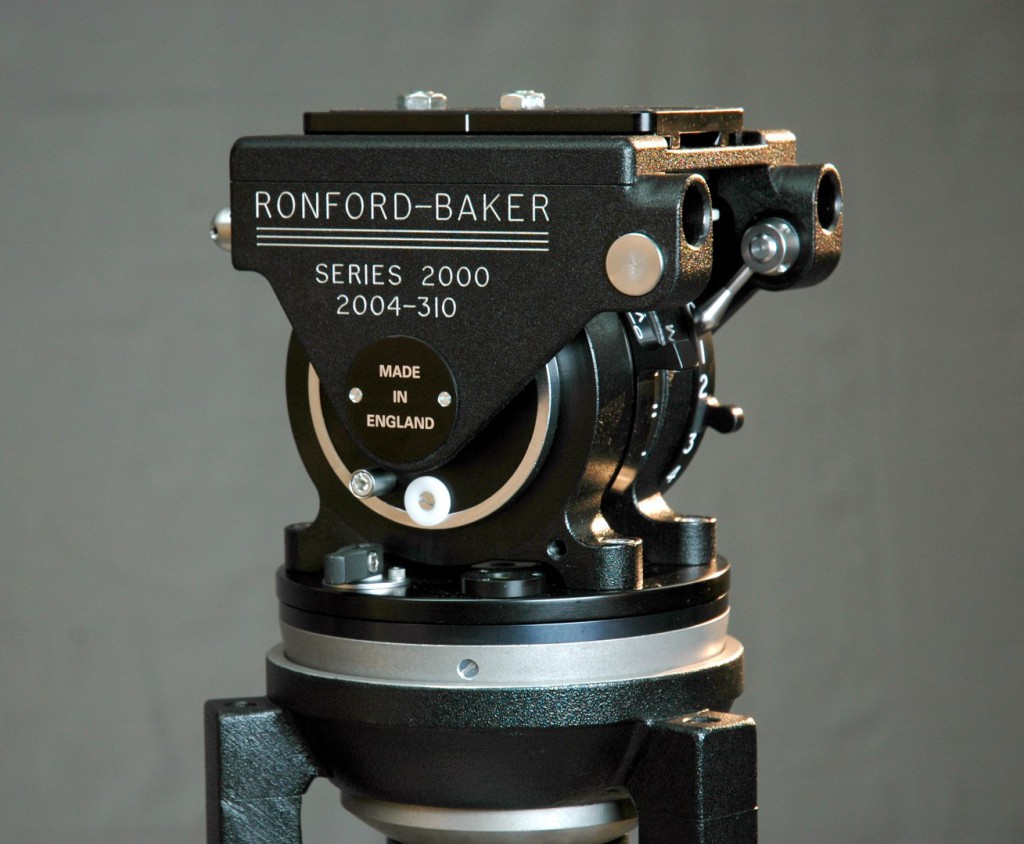

Model 2004

Incorporates the will proven Ronford-Baker fluid system operated by a single fluid system control lever with four progressive positions both pan and tilt.

The tilt operation is backed up by a balance control system with an “off” position and seven progressive settings operated by a single control lever, giving an unprecedented smoothness and accuracy of control and balance under all situations.

  • Engineered for quality, strength and durability.
  • Quick release camera plate adjustable for balance with built in safety stops and scale.
  • Double pan bar facility.
  • Smooth positive braking on pan and tilt.
  • 150mm bowl fitting or Mitchell base.
  • Tilt 120º.
  • Fully guaranteed.

Technical Specifications
Weight 14lb (6.5kg).
Operational temperature range
+150ºF to -40ºF (+60ºC to -40ºC).

2015

The 2015 head incorporates two sealed fluid units which, by the use of four simple on/off leavers, can be varied from a cushioned free head to the heaviest control required in fifteen stages with a smooth accurate action.

The quick release camera plate is infinitely adjustable for camera lens balance, with built-in foolproof safety stops, and scale.
