ZK 4K Premier Cabrio Series
ZK Cabrio lenses series feature an unique detachable servo drive unit
ZK 4K Premier Cabrio Series
ZK Cabrio lenses series feature an unique detachable servo drive unit, making it suitable for use as a standard Cine Production Style or Broadcast Style.
ZK2.5x14
14-35mm T2.9 Light Weight Wide-Angle Zoom
ZK2.5x14 is a wide angle zoom lens with a focal length covering from 14 to 35mm. Thanks to the detachable servo drive unit on the ZK series, the lens can be operated in the same manner as a traditional broadcast ENG-Style lens and accessories. Furthermore, with the servo drive unit removed, traditional cinema manual, or external cine motors for zooming and focusing operation is also available for all models of this series.
With the latest optical simulation technology and high precision large diameter aspherical elements, it has achieved both high optical performance and a lightweight compact body of 2.9kg. Thanks to high resolution from the center to corner, high image quality without image distortion will be exhibited on the large screens of movie theaters.
Feature
- Outstanding 4K optical performance and compact design
- ENG Style with Detachable Servo Drive Unit
- Super 35mm large format coverage
- Compatible with current broadcast and cine lens accessories
- Natural Bokeh(Blur) thanks to 9-Brads Round Iris
- 16bit encoder for virtual device
Specifications
Model name
ZK2.5x14
Application
35mm PL Mount Camera
Focal length
14-35mm
Zoom raito
2.5x
T-no.
T2.9
Iris blades
9
M.O.D.from image planes
0.6m / 2'
Object dimensions at M.O.D.
1.78 : 1 Aspect raito*
14mm 701 x 394mm
35mm 275 x 155mm
Angular field of view
1.78 : 1 Aspect raito*
14mm 88°52' x 57°45'
35mm 42°49' x 24°53'
Focus rotation
200°
Zoom rotation
120°
Size (φ x Length)
φ114 x 231mm
Mass
2.9kg (with Drive Unit) / 2.4kg (without Drive Unit)
- *Sensor Size : 27.45 x 15.44mm
| Model name | ZK2.5x14 |
|---|---|
| Application | 35mm PL Mount Camera |
| Focal length | 14-35mm |
| Zoom raito | 2.5x |
| T-no. | T2.9 |
| Iris blades | 9 |
| M.O.D.from image planes | 0.6m / 2' |
| Object dimensions at M.O.D. 1.78 : 1 Aspect raito* |
14mm 701 x 394mm 35mm 275 x 155mm |
| Angular field of view 1.78 : 1 Aspect raito* |
14mm 88°52' x 57°45' 35mm 42°49' x 24°53' |
| Focus rotation | 200° |
| Zoom rotation | 120° |
| Size (φ x Length) | φ114 x 231mm |
| Mass | 2.9kg (with Drive Unit) / 2.4kg (without Drive Unit) |

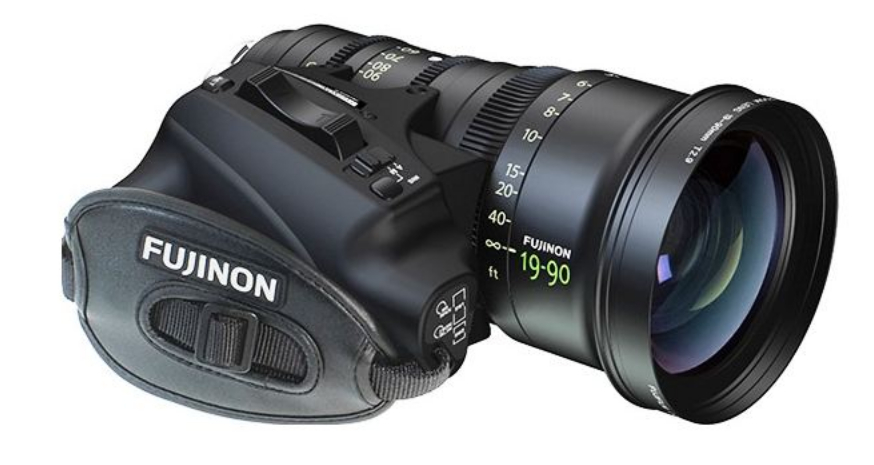

ZK4.7x19
19-90mm T2.9 Light Weight Standard Zoom
ZK4.7x19 is a stamdard zoom lens with a frequuently-used focal length covering from 19 to 90mm. Thanks to the detachable servo drive unit on the ZK series, the lens can be operated in the same manner as a traditional broadcast ENG-Style lens and accessories. Furthermore, with the servo drive unit removed, traditional cinema manual, or external cine motors for zooming and focusing operation is also available for all models of this series.
With the latest optical simulation technology and high precision large diameter aspherical elements, it has achieved both high optical performance and a lightweight compact body of 2.85kg. Thanks to high resolution from the center to corner, high image quality without image distortion will be exhibited on the large screens of movie theaters.
Feature
- Outstanding 4K optical performance and compact design
- ENG-Style with Detachable Servo Drive Unit
- Super 35mm large format coverage
- Compatible with current broadcast and cine lens accessories
- Natural Bokeh(Blur) thanks to 9-Brads Round Iris
- 16bit encoder for virtual device
Specifications
Model name
ZK4.7x19
Application
35mm PL Mount Camera
Focal length
19-90mm
Zoom raito
4.7x
T-no.
T2.9
Iris blades
9
M.O.D.from image planes
0.85m / 2'10″
Object dimensions at M.O.D.
1.78 : 1 Aspect raito*
19mm 917 x 516mm
90mm 193 x 109mm
Angular field of view
1.78 : 1 Aspect raito*
19mm 71°41' x 44°14'
90mm 17°20' x 9°48'
Focus rotation
200°
Zoom rotation
120°
Size (φ x Length)
φ114 x 226mm
Mass
2.8kg (with Drive Unit) / 2.3kg (without Drive Unit)
- *Sensor Size : 27.45 x 15.44mm
| Model name | ZK4.7x19 |
|---|---|
| Application | 35mm PL Mount Camera |
| Focal length | 19-90mm |
| Zoom raito | 4.7x |
| T-no. | T2.9 |
| Iris blades | 9 |
| M.O.D.from image planes | 0.85m / 2'10″ |
| Object dimensions at M.O.D. 1.78 : 1 Aspect raito* |
19mm 917 x 516mm 90mm 193 x 109mm |
| Angular field of view 1.78 : 1 Aspect raito* |
19mm 71°41' x 44°14' 90mm 17°20' x 9°48' |
| Focus rotation | 200° |
| Zoom rotation | 120° |
| Size (φ x Length) | φ114 x 226mm |
| Mass | 2.8kg (with Drive Unit) / 2.3kg (without Drive Unit) |

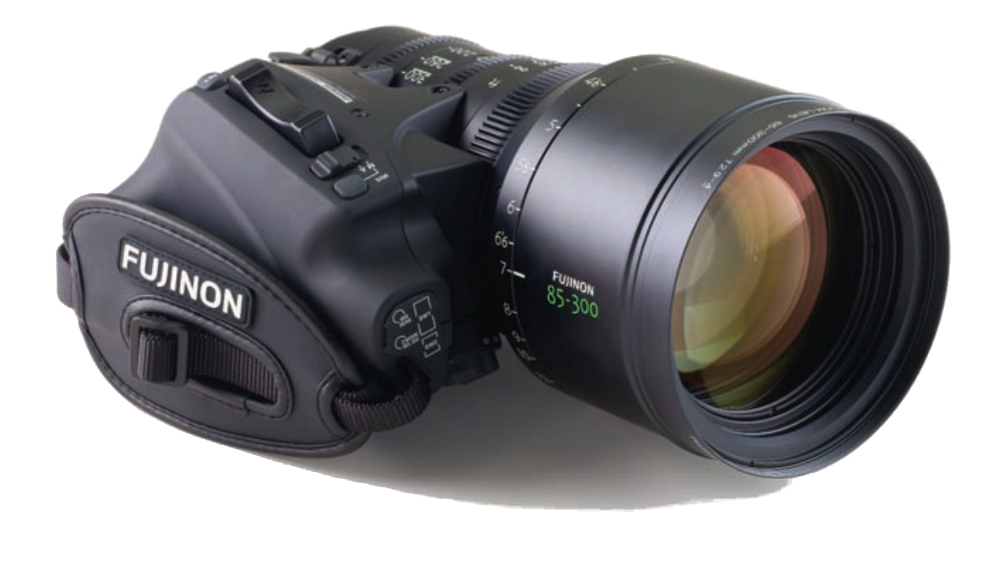

ZK3.5x85
85-300mm T2.9-4.0 Light Weight Telephoto zoom
ZK3.5x85 is a telephoto zoom lens with a frequuently-used focal length covering from 85 to 300mm. Thanks to the detachable servo drive unit on the ZK series, the lens can be operated in the same manner as a traditional broadcast ENG-Style lens and accessories. Furthermore, with the servo drive unit removed, traditional cinema manual, or external cine motors for zooming and focusing operation is also available for all models of this series.
With the latest optical simulation technology and high precision large diameter aspherical elements, it has achieved both high optical performance and a lightweight compact body of 2.9kg. Thanks to high resolution from the center to corner, high image quality without image distortion will be exhibited on the large screens of movie theaters.
Feature
- Outstanding 4K optical performance and compact design
- ENG-Style with Detachable Servo Drive Unit
- Super 35mm large format coverage
- Compatible with current broadcast and cine lens accessories
- Natural Bokeh(Blur) thanks to 9-Brads Round Iris
- 16bit encoder for virtual device
Specifications
Model name
ZK3.5x85
Application
35mm PL Mount Camera
Focal length
85-300mm
Zoom raito
3.5x
T-no.
T2.9 (85-218mm) T4.0 (300mm)
Iris blades
9
M.O.D.from image planes
1.2m / 4'
Object dimensions at M.O.D.
1.78 : 1 Aspect raito*
85mm 274 x 154mm
300mm 79 x 44mm
Angular field of view
1.78 : 1 Aspect raito*
85mm 18°21' x 10°23'
300mm 5°14' x 2°57'
Focus rotation
200°
Zoom rotation
120°
Size (φ x Length)
φ114 x 249mm
Mass
3.1 kg (with Drive Unit) / 2.6 kg (without Drive Unit)
- *Sensor Size : 27.45 x 15.44mm
| Model name | ZK3.5x85 |
|---|---|
| Application | 35mm PL Mount Camera |
| Focal length | 85-300mm |
| Zoom raito | 3.5x |
| T-no. | T2.9 (85-218mm) T4.0 (300mm) |
| Iris blades | 9 |
| M.O.D.from image planes | 1.2m / 4' |
| Object dimensions at M.O.D. 1.78 : 1 Aspect raito* |
85mm 274 x 154mm 300mm 79 x 44mm |
| Angular field of view 1.78 : 1 Aspect raito* |
85mm 18°21' x 10°23' 300mm 5°14' x 2°57' |
| Focus rotation | 200° |
| Zoom rotation | 120° |
| Size (φ x Length) | φ114 x 249mm |
| Mass | 3.1 kg (with Drive Unit) / 2.6 kg (without Drive Unit) |
ZK12x25
25-300mm T3.5-3.8 versatile zoom
The all-new ZK12x25 offers the industry-leading zoom ratio of 12x to cover the most frequently-used 25mm wide angle to 300mm on the telephoto end. With its advanced optical performance supporting 4K cameras, the lens delivers a premium image quality across a versatile range of shooting scenes.
The ZK12x25 also supports an optional detachable drive unit for electric zooming, focusing and iris. Mounting the drive unit enables the remote control of zooming, focusing and iris adjustment. The availability of the Zoom Rate and Focus Position Demand controls means the lens offers the operability equivalent to conventional TV camera lenses.
Features
- A versatile high zoom ratio lens covering focal lengths from 25mm to 300mm
- Outstanding 4K optical performance
- Super 35mm large format coverage
- Back Focus Adjustment with Macro Function
- Natural Bokeh(Blur) thanks to 9-Brades Round Iris
- Optionally Drive Unit is available
Specifications
Model name
ZK12x25
Application
35mm PL Mount Camera
Focal length
25-300mm
Zoom raito
12x
T-no.
T3.5 (25-273mm) T3.85 (300mm)
Iris blades
9
M.O.D.from image planes
1.2m / 4'
Object dimensions at M.O.D.
1.78 : 1 Aspect raito*
25mm 937 x 527mm
300mm 77 x 43mm
Angular field of view
1.78 : 1 Aspect raito*
25mm 57°32' x 34°19'
300mm 5°14' x 2°57'
Focus rotation
280°
Zoom rotation
120°
Size (φ x Length)
φ136 x 401mm
Mass
8.4kg (without Drive Unit)
- *Sensor Size : 27.45 x 15.44mm
| Model name | ZK12x25 |
|---|---|
| Application | 35mm PL Mount Camera |
| Focal length | 25-300mm |
| Zoom raito | 12x |
| T-no. | T3.5 (25-273mm) T3.85 (300mm) |
| Iris blades | 9 |
| M.O.D.from image planes | 1.2m / 4' |
| Object dimensions at M.O.D. 1.78 : 1 Aspect raito* |
25mm 937 x 527mm 300mm 77 x 43mm |
| Angular field of view 1.78 : 1 Aspect raito* |
25mm 57°32' x 34°19' 300mm 5°14' x 2°57' |
| Focus rotation | 280° |
| Zoom rotation | 120° |
| Size (φ x Length) | φ136 x 401mm |
| Mass | 8.4kg (without Drive Unit) |
