HK 4K+ Premier Series

Ultimate high performance zoom Lens.

4K+ Premier Zoom series has wide to telephoto long, original 4 zoom lenses line-up.

HK 4K+ Premier Series

Ultimate high performance zoom Lens.

HK3.1x14.5

Premier Zoom 14.5-45mm T2.0 Primarily Wide

HK3.1x14.5  14.5-45mm T2.0 covers unlimited focal lengths in a range where primes previously were the rule. This lens works like a high-end Prime when dealing with distortion, chromatic aberration, and all the tough challenges of wide angle lens design. MTF and resolution is stellar from the center to the corners, without shading or fall-off. This is the most expensive, yet most compact of the four Premiers.


  • Feature

  • Outstanding 4K+ ultra optical performance
  • Fast T-Stop
  • Super 35mm format coverage*
  • 280 degree focus barrel rotation
  • Colar Matching
  • Minimal breathing




Specifications

Model name HK3.1x14.5
Application 35mm PL Mount Camera
Focal length 14.5-45mm
Zoom raito 3.1x
T-no. T2.0
Iris blades 9
M.O.D.from image planes 0.71m / 2'4″
Object dimensions at M.O.D.
1.78 : 1 Aspect raito*		 14.5mm   693 x 390mm
45mm   215 x 121mm
Angular field of view
1.78 : 1 Aspect raito*		 14.5mm   79°13' x 49°56'
45mm   29°52' x 17°04'
Focus rotation 280°
Zoom rotation 160°
Size (φ x Length) φ136 x 310mm
Mass 6.5kg
  • *Sensor Size : 24.0 x 13.5mm






HK4.7x18

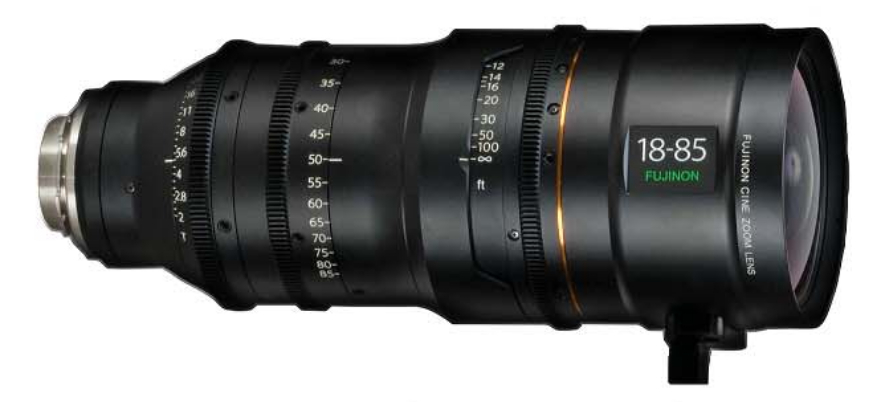

Premier Zoom 18-85mm T2.0 Primarily Dramatic

HK4.7x18  18-85mm T2.0 zoom is an all-purpose zoom encompassing the most used focal length range for the majority of dramatic studio and location scenes. Fujinon HK Premier Zooms are designed for the highest performance cameras. They exhibit minimal breathing when focusing. Image quality is consistent and repeatable. Coatings and elements of all lenses are consistently color matched. The 280 degree focus barrel rotation ensures an expanded focus scale, with accurate and consistent marks.

Feature

  • Outstanding 4K+ ultra optical performance
  • Fast T-Stop
  • Super 35mm format coverage*
  • 280 degree focus barrel rotation
  • Colar Matching
  • Minimal breathing


Specifications

Model name HK4.7x18
Application 35mm PL Mount Camera
Focal length 18-85mm
Zoom raito 4.7x
T-no. T2.0
Iris blades 9
M.O.D.from image planes 0.82m / 2'9″
Object dimensions at M.O.D.1.78 : 1 Aspect raito* 18mm   656 x 369mm85mm   139 x 78mm
Angular field of view1.78 : 1 Aspect raito* 18mm   67°23' x 41°07'85mm   16°04' x 9°05'
Focus rotation 280°
Zoom rotation 160°
Size (φ x Length) φ136 x 352mm
Mass 7.0kg
  • *Sensor Size : 24.0 x 13.5mm

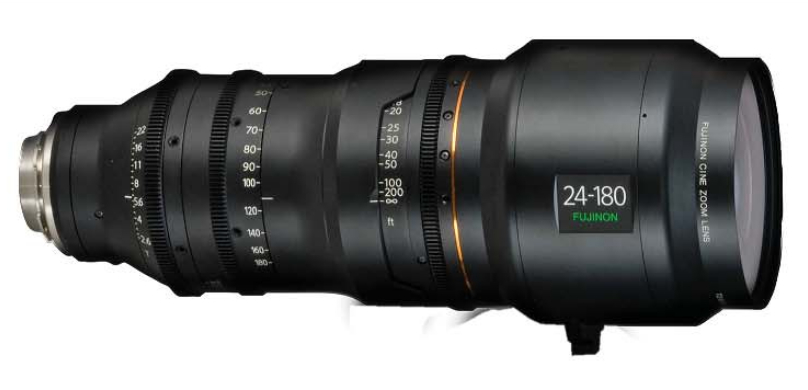

HK7.5x24

Premier Zoom 24 - 180mm T2.6 Primarily Versatile

HK7.5x24  24-180mm T2.6 is the high-quality general purpose member of the family of four 4K+ PL Cine zoom lenses. Identified by their gold band, Fujinon Premier PL 4K+ lenses consistently match each other superbly for focus, iris, zoom, color, contrast, and performance.


Feature

  • Outstanding 4K+ ultra optical performance
  • Fast T-Stop
  • Super 35mm format coverage*
  • 280 degree focus barrel rotation
  • Colar Matching
  • Minimal breathing



Specifications

Model name HK7.5x24
Application 35mm PL Mount Camera
Focal length 24-180mm
Zoom raito 7.5x
T-no. T2.6
Iris blades 9
M.O.D.from image planes 1.24m / 4'1″
Object dimensions at M.O.D.
1.78 : 1 Aspect raito*		 24mm   924 x 520mm
180mm   119 x 67mm
Angular field of view
1.78 : 1 Aspect raito*		 24mm   53°08' x 31°25'
45mm   07°38' x 4°18'
Focus rotation 280°
Zoom rotation 160°
Size (φ x Length) φ136 x 405mm
Mass 8.9kg
  • *Sensor Size : 24.0 x 13.5mm

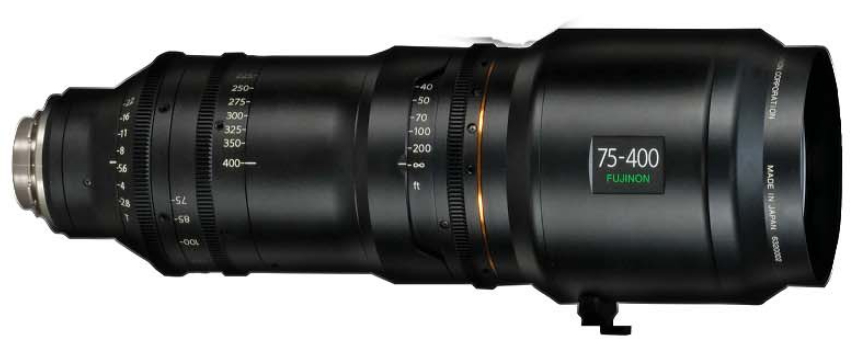

HK5.3x75

Premier Zoom 75-400mm T2.8 Primarily Far-Reaching

HK5.3x75  75-400mm T2.8-3.8 Zoom when they need to cover a wide range from medium focal length to long telephoto. This is an important lens for sports, cars, action, wildlife, commercials, exteriors, compression shots, slowmotion, and other situations where you want a long lens, with a fast aperture, in a small and light body. It eliminates lots of scrambling to change lenses at magic hour.

Feature

  • Outstanding 4K+ ultra optical performance
  • 400mm Super Telephoto
  • Super 35mm format coverage*
  • 280 degree focus barrel rotation
  • Colar Matching
  • Minimal breathing

Specifications

Model name HK5.3x75
Application 35mm PL Mount Camera
Focal length 75-400mm
Zoom raito 5.3x
T-no. T2.8 (75-290mm)   T3.8 (400mm)
Iris blades 9
M.O.D.from image planes 2m / 6'9″
Object dimensions at M.O.D.
1.78 : 1 Aspect raito*		 75mm   580 x 326mm
400mm   113 x 64mm
Angular field of view
1.78 : 1 Aspect raito*		 75mm   18°11' x 10°17'
400mm   3°26' x 1°56'
Focus rotation 280°
Zoom rotation 160°
Size (φ x Length) φ136 x 444mm
Mass 9.1kg
  • *Sensor Size : 24.0 x 13.5mm
